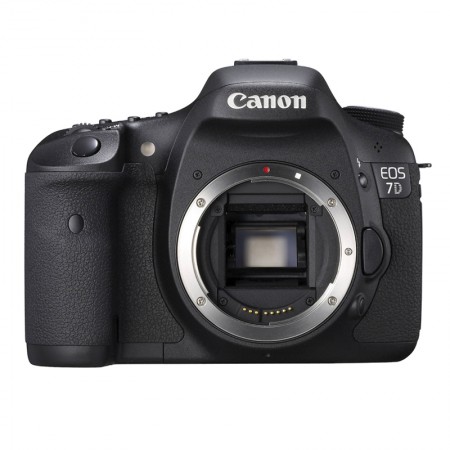

Body material : Magnesium alloy

Sensor

• 22.3 x 14.9 mm CMOS sensor
• RGB Color Filter Array
•  Built-in fixed low-pass filter (with self-cleaning unit)
• 19 million total pixels
• 18 million effective pixels
•  3:2 aspect ratio

Image processor  : Dual DIGIC 4

A/D conversion : 14 bit

Image Sizes ( Still)

RAW

• 5184 x 3456
• 3888 x 2592
• 2592 x 1728
• JPEG
• 5184 x 3456
•  3456 x 2304
•  2592 x 1728

Image Sizes (Movie)

• 1920 x 1080 (29.97, 25, 23.976 fps)
• 1280 x 720 (59.94, 50 fps)
• 640 x 480 (59.94, 50 fps)

File formats (Still)

•  JPEG (EXIF 2.21) - Fine / Normal
•  RAW
•  M-RAW
•  S-RAW
•  RAW + JPEG
•  M-RAW + JPEG
•  S-RAW + JPEG

File formats (Movie) : MOV (Video: H.264, Sound: Linear PCM)

Lenses

• Canon EF / EF-S lens mount
• 1.6x field of view crop

Dust reduction

•  EOS integrated cleaning system with fluorine coating
•  Self-cleaning sensor unit (filter in front of sensor vibrates at high frequency at start-up and shutdown - can be disabled)
•  Dust Delete Data - Data from a test shot is used to 'map' dust spots and can be later removed using Canon DPP Software

Auto focus

• TTL-CT-SIR CMOS sensor
• 19 cross-type AF points (f/2.8 at centre)
•  Center point additionally sensitive with lenses of F2.8 or faster
• AF working range: -0.5 - 18 EV (at 23°C, ISO 100)

Focus modes

•  One shot AF
•  AI Servo AF
• AI Focus AF
•  Manual focus

AF point selection

• Auto : 19 point
•  Manual : Single point/ Spot/ AF point Expansion/ Zone

AF Lock :  Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed

Predictive AF

• Up to 8 m

AF assist

•  Stroboscopic flash

AF microadjust

•  +/- 20 steps
•  Adjust all lenses by same amount/individually adjust up to 20 lenses

Metering

•  TTL full aperture metering with 63 zone Dual Layer SPC
•  Metering range: EV 1 - 20 EV

Metering modes

• Evaluative metering (linked to all AF points)
•  Partial (9.4% at center)
•  Spot metering (approx. 2.3% at center)
•  Center-weighted average
• AE lock
• • Auto: One Shot AF with evaluative metering
• • Manual: AE lock button

Exposure compensation

•  +/-5.0 EV
•  0.3 or 0.5 EV increments

Exposure bracketing

• +/- 3.0 EV
•  0.3 or 0.5 EV increments

Sensitivity

• Auto ISO (100-3200)
•  ISO 100-6400 in 0.3 or 1.0 EV increments
•  H (12800) expansion

Shutter

•  Focal-plane shutter
•  30 - 1/8000 sec
•  0.3 or 0.5 EV increments
•  Flash X-Sync: 1/250 sec
•  Bulb

Aperture values

•  0.3 or 0.5 EV increments
•  Actual aperture range depends on lens used

White balance

• Auto
• Daylight
• Shade
• Cloudy
• Tungsten
•  White Fluorescent light
• Flash
• Custom
• Kelvin (2500 - 10000 K in 100 K steps)

WB bracketing

•  +/-3 levels
•  3 images
•  Blue / Amber or Magenta / Green bias

WB shift

• • Blue (-9) To Amber (+9)
• • Magenta (-9) to Green (+9)

Picture style

• Standard
• Portrait
• Landscape
• Neutral
• Faithful
• Monochrome
• User def. 1
• User def. 2
• User def. 3

Custom image parameters

•  Sharpness: 0 to 7
•  Contrast: -4 to +4
•  Saturation: -4 to +4
•  Color tone: -4 to +4
•  B&W filter: N, Ye, Or, R, Gvan
• •B&W tone: N, S, B, P, G

Image processing

•  Highlight tone priority
•  Auto lighting optimizer (4 settings)
•  Long exposure noise reduction
•  High ISO noise reduction (4 settings)
• •Auto correction of lens peripheral illumination (vignetting)

Color space

•  sRGB
•  Adobe RGB

Viewfinder

• Eye-level pentaprism
• 100% frame coverage
• Approx. 1.0x maginification
• Eyepoint: 22 mm
• Fixed screen (Transmissive LCD screen)
• Dioptric adjustment: -3.0 to +1.0 diopter

Mirror

•  Quick-return half mirror (transmission:reflection ratio 40:60)
•  Mirror lock-up (once or multiple exposures)

Viewfinder info

•  AF points
• Focus confirmation light
• Shutter speed
• Aperture value
• ISO speed (always displayed)
• AE lock
• Exposure level/compensation
• Spot metering circle
• Exposure warning
• AEB.
• Flash ready
• High-speed sync
• FE lock
• Flash exposure compensation
• Red-eye reduction light
• White balance correction
• CF card information
•  Monochrome shooting
• Maximum burst (2 digit display)
• Highlight tone priority (D+)
• Grid
• Dual Axis Electronic level

LCD monitor

• 3.0 " TFT LCD
• 920,000 pixels
• 100% coverage
• 160 ° viewing angle
• Coating : Anti-reflection and Solid Structure

LCD Live view

• Live TTL display of scene from CMOS image sensor
• 100% frame coverage
• 30 fps frame rate
• Real-time evaluative metering using CMOS image sensor
• Best view or exposure simulation
• Silent mode
• Grid optional (x2)
• Magnify optional (5x or 10x at AF point)
• Three AF modes - Live mode/Quick mode/Face Detection
• Histogram
• Remote live view using EOS Utility 2.0 (via USB or WiFi/Ethernet using WFT)

Record review

• Off
• On (histogram via INFO button)
• Display mode same as last used Play mode

Playback modes

• Single image with exposure, file number, storage slot
• As 1 but also image count and quality
• Detailed exposure information, thumbnail and luminance histogram
• Less detailed exposure info., thumbnail, luminance and RGB histograms

Playback features

• Optional blinking highlight alert
• Optional AF point display
• Magnified view (up to 1.5x - 10x)
• 2x2 or 3x3 thumbnail index
• Delete / Protect

Flash

• Auto pop-up E-TTL II auto flash
• FOV coverage up to15 mm (27 mm equiv.)
• Guide number approx 12 m (ISO 100)
• Cycle time approx. 3 sec
• Flash compensation +/-3.0 EV in 0.3 or 0.5 EV increments
• X-Sync: 1/250 sec

External flash

• E-TTL II auto flash with EX-series Speedlites
• Wireless multi-flash support
• PC Sync

Shooting modes

• Auto
• Creative auto
• Program AE (P)
• Shutter priority AE (Tv)
• Aperture priority AE (Av)
• Manual (M) Stills and Movie
• Custom settings 1
• Custom settings 2
• Custom settings 3
• Drive modes
• • Single
• • High-speed continuous
• • Low-speed continuous
• • Self-timer: 2sec + remote, 10sec + remote
• Burst buffer *

Approx.  :   8 fps (speed maintained for up to 126 JPEGs (with UDMA card), 15 images (RAW))

Orientation sensor  :  Yes

Auto rotation

• On (recorded and LCD display)
• On (recorded only)
• Off

Custom functions  : 27 Custom Fubctions with 70 settings

Menu languages

• English
• German
• French
• Dutch
• Danish
• Portuguese
• Finnish
• Italian
•  Norwegian
•  Swedish
• Spanish
• Greek
• Russian
• Polish
• Czech
• Hungarian
• Romanian
• Ukrainian
• Turkish
•  Arabic
• Thai
• Simplified Chinese
• Traditional Chinese
• Korean
• Japanese

Firmware : User upgradable

Portrait grip

• Optional BG-E7 Battery Grip
• Optional WFT-E5 Wireless File Transfer Grip

Connectivity

• USB 2.0 Hi-Speed
• Video output (PAL/ NTSC)
• HDMI connector
• N3 type wired remote control
• PC Sync flash terminal
• External microphone (Stereo mini jack)
• Communication terminal on base for WFT-E5

Storage

• Compact Flash Type I or II
• Supports UDMA and Microdrive cards
• External storage via optional WFT-E5

Power

•  Lithium-Ion LP-E6 rechargeable battery (supplied & charger)
•  CR1616 Lithium battery (date/time backup)
• Optional AC adapter
• Wireless connectivity

(optional WFT-E5)

• Mounts on base of camera and also acts as vertical grip
• Has its own BP-511A battery
• Wireless 802.11b / 802.11g
• Wireless security: WEP, TKIP/AES, WPA-PSK, WPA2-PSK
• Wireless methods: Infrastructure or Ad Hoc
• Wired ethernet (100 Base-TX)
• Transfer: FTP, PTP (remote control by computer), HTTP (view / remote fire)
• USB host capable: External hard drives, flash drives
• USB comms: GPS devices (records coordinates and altitude in image header)

Dimensions  :  148 x 111 x 74 mm (5.8 x 4.3 x 2.8 in)

Weight   :   No battery: 820 g (1.8 lb)
